| 起源の場所: | 上海,中国 |
| ブランド名: | Royal Way |
| 証明: | ISO9001 |
| モデル番号: | AS568 |
| 最小注文数量: | 5000個 |
|---|---|
| 価格: | EXW$0.01/pc to $0.3/pc |
| パッケージの詳細: | 中身はPP袋+外側はカートン (必要に応じてパレットのカートン) |
| 受渡し時間: | 5-15日 |
| 支払条件: | T/T,L/C,Paypal,ウェスタンユニオン |
| 供給の能力: | 週に500000個 |
| 材質の種類: | コンタクトおよびサービス仕様によるシリコーングレード | 応用分野: | 食品加工機器に関するお問い合わせ;コンパウンドと接触条件の見直しが必要 |
|---|---|---|---|
| 処理サービス: | 模具開き | カスタム: | OEM ODM サービスを提供 |
| タイプ: | 指定溝用丸形シリコンOリング | 標準: | 正確な AS568 ダッシュ番号または寸法図。該当するリビジョンを確認する |
| 温度範囲: | 選択されたシリコーン化合物は流体および暴露条件によって制限されます | カスタムサービス: | 利用可能 |
| 形 と 大きさ: | リクエストとしてカスタム | デュロメータ: | 20-90 ショア A オリジナルレンジ。目標と許容範囲の一致 |
| パッケージ: | プラスチック袋+紙箱 | サンプル: | サンプルの在庫状況、数量、条件を見積書で確認します |
| ハイライト: | 液圧シール ゴムOリング,石油・ガス産業 ゴムリング,食品用ゴム Oリング |
||
| Selection item | Required information |
|---|---|
| Dimensions | Inside diameter and cross-section with tolerances, or exact AS568 dash number and applicable revision. |
| Contact duty | Food or process fluid, direct or indirect contact, duration and normal or peak temperature. |
| Cleaning cycle | Cleaning chemicals, concentration, temperature and exposure duration; identify steam cycles where applicable. |
| Compound documentation | Applicable market regulation and documentation for the exact compound and intended contact conditions. |
| Acceptance | Target Shore A hardness, colour, surface requirements and inspection criteria. |
Medical-equipment suitability requires its own application qualification. Food-contact documentation does not establish hydraulic pressure performance, sour-service suitability or medical approval. ISO 9001 relates to quality management and does not certify an individual silicone compound for food contact.

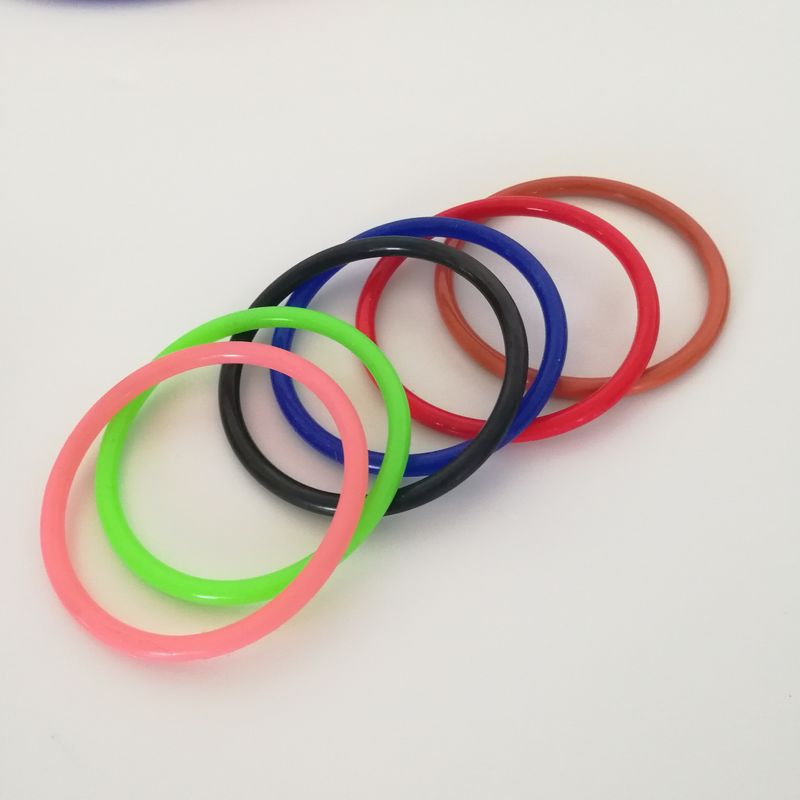

Royal Way silicone rubber O-rings are specified by groove dimensions, inside diameter, cross-section and service conditions. For food-processing enquiries, provide the contact medium, exposure time, temperature and applicable destination-market requirements. Select a documented silicone compound for the intended contact conditions; a silicone material name does not establish food-contact or medical suitability.
|
Material |
Silicone compound for this enquiry; alternative polymers require separate service review. |
|---|---|
|
Hardness |
Original 20-90 Shore A range reference; agree grade-specific target and tolerance. |
|
Feature |
Sealing performance depends on silicone grade, groove geometry and operating conditions. |
|
Mode of Production |
Compression, injection, injection transfer, extrusion, molding |
|
Production Capabilities |
Tooling, molding process and inspection plan confirmed against the order drawing. |
|
Size/Color |
The size and color can be custom as customer’s requirements |
|
Other Service |
Customized drawing designs are welcome.Customized OEM products |
Application of the rubber o ring:
For a food-processing equipment groove, specify product-contact fluids, cleaning agents and the full cleaning cycle. For hydraulic or oilfield enquiries, review the exact oil or fuel, pressure, motion and compound data separately; this silicone listing does not establish suitability for those duties.
Structure and sizes:
AS568 O-ring enquiries by exact dash number; confirm dimensions, compound and availability.
Sizes: (ID × C/S) (mm)
Packing and shipping:
Standard export packing, inner plastic bag, outer with carton. Carton in pallets if necessary.
1: Express: DHL,UPS, TNT, FedEx, EMS ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
The steps of the production:
Other relative rubber products for oil drilling use:
Company Profile:
Shanghai Qinuo Industry Co. Ltd supplies rubber, plastic and machined parts to agreed drawings. Our ISO 9001 quality management supports specification review and inspection. Silicone O-ring enquiries should include the dimensioned drawing, compound requirements and intended contact conditions.
FAQ
Q1: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Q2: How can we guarantee quality?
Agree the silicone O-ring inside diameter, cross-section, hardness and dimensional inspection criteria. Specify the contact and cleaning conditions and applicable documentation for the selected compound.
Q3: Can I get some samples?
Confirm sample availability, quantity, silicone compound and shipping terms for the specified O-ring size with the quotation.
Q4: Can you produce OEM products?
Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.
Q5: What's the term of payment ?
Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
Q6: Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
Q7: What is the lead time?
Stock goods: generally within 7days according to the quantity.
Produce Goods: 12-25days according to the packing and quantity.
